A perfect Level Transmitter based on Radio Frequency principle for Continuous level monitoring of Solids, Liquids & Slurries.

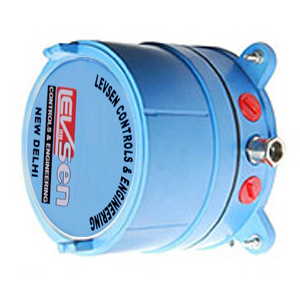

Electronic Transmitter contains entire electronics & adjustment housed in a Dust/Weather proof enclosure and it is mounted separately at a convenient location remote from sensing probe.
Specification
|
Range |
|
upto 50 mtrs |
|
Power supply |
|
230 / 110 VAC |
|
Power supply |
|
4 to 20 mA (Isolated) |
|
Mounting |
|
Remote from probe (max 25 mtrs distance) |
|
Location |
|
Outdoor heavy dust area |
|
Enclosure |
|
Cast Aluminium, Dust / Weather proof |
|
Ingress Protection |
|
IP-65 |
|
Cable Entry |
|
Three Nos. |
1. 3/4 ET for connection f or power cable
2. 5/8 ET of Coaxial Cable
3. 3/4 ET for Output Signal Cable

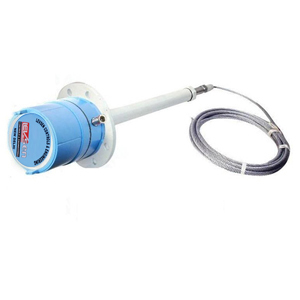

Sensing Probe (RFLT100-SP)
Levsen RF Sensing probe contains no Electronics & no moving part. It is mounted in Tanks/Hopper/Vessels/Silos etc. of application material.
|
Probe Insertion Length/Range |
|
50 mtrs max (As required) |
|
Process Temperature |
|
250 / 450ºC |
|
Process Connection |
|
40 NB Thread or Flange (As required) |
|
Protection |
|
IP 65 |
|
Mounting |
|
Top |
|
Probe Head |
|
Cast Aluminum, Dust / Weather proof |
|
Insulation |
|
PTFE / Ceramic |
|
Electronics |
|
Remote (no electronic on Probe) |
|
Compatible Electronics |
|
Electronic Transmitter (Model RFLT100-ET) |
|
Cable to Electronic Controller |
|
RF Coaxial cable |
